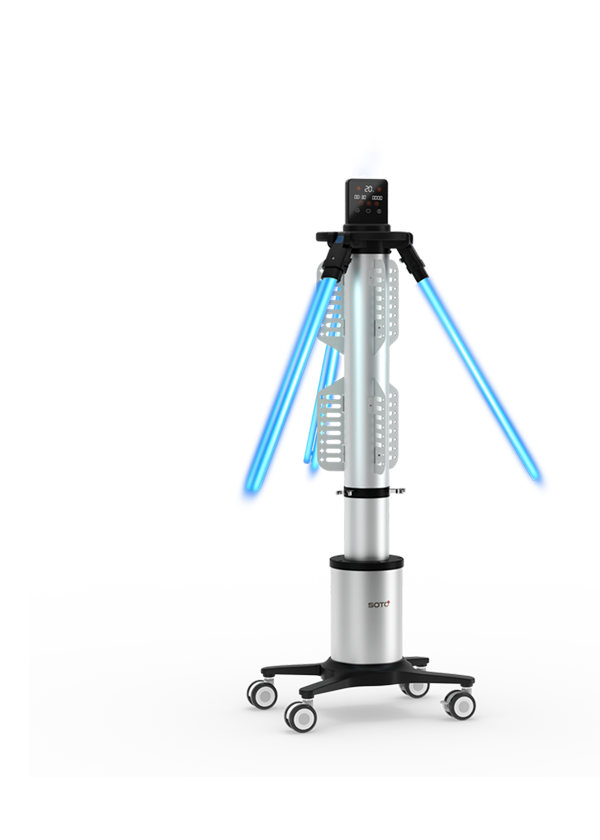

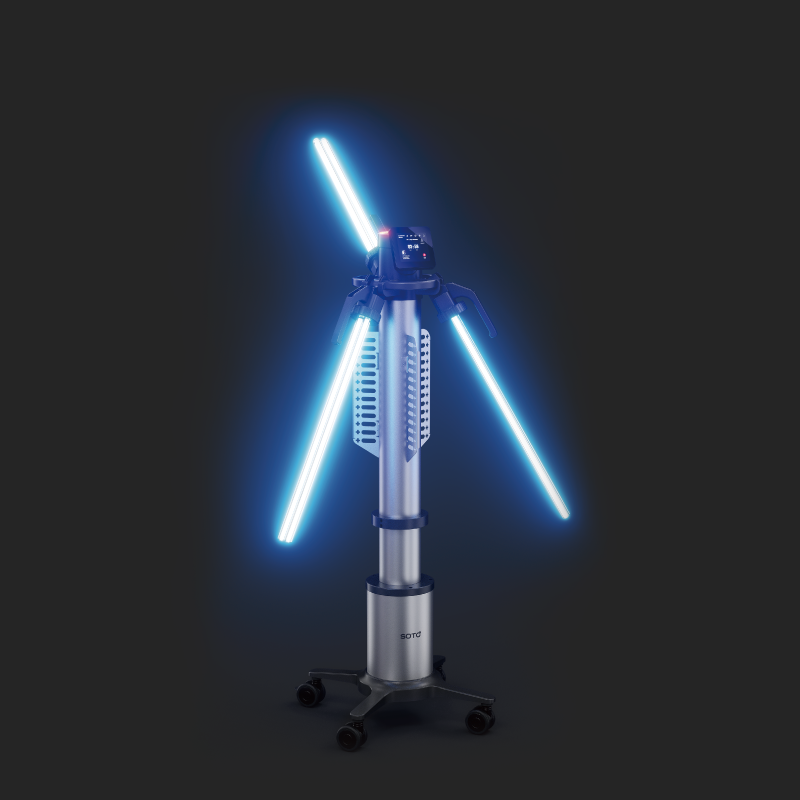

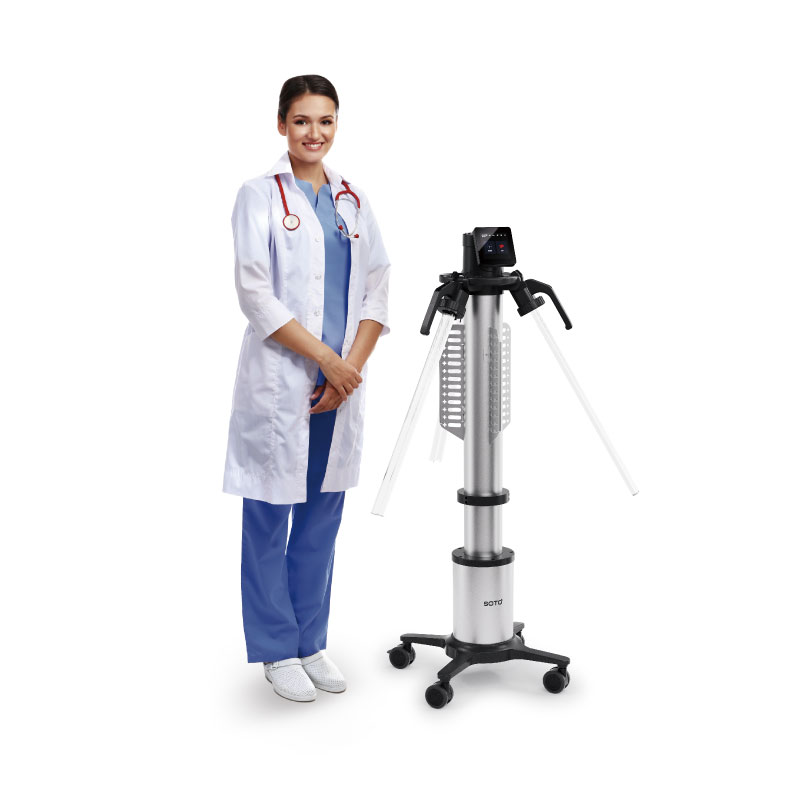

SOTO-UV360 Medical UV Sterilizer

UV360’s smart operating system eliminates all the downsides of conventional UV sterilizers. Delayed start, radar sensor and automatic shut-off functions prevent accidental UV exposure. Usage meter automatically tracks unit usage.
Eliminates all the downsides of conventional UV sterilizers
UV360 is equipped with smart operating system, eliminating all the downsides of conventional UV sterilizers. The UV360 protects users from accidental UV exposure with its delayed start and smart radar automatic shut-off technologies.
Eliminates all the downsides of conventional UV sterilizers
Eliminates all the downsides of conventional UV sterilizers

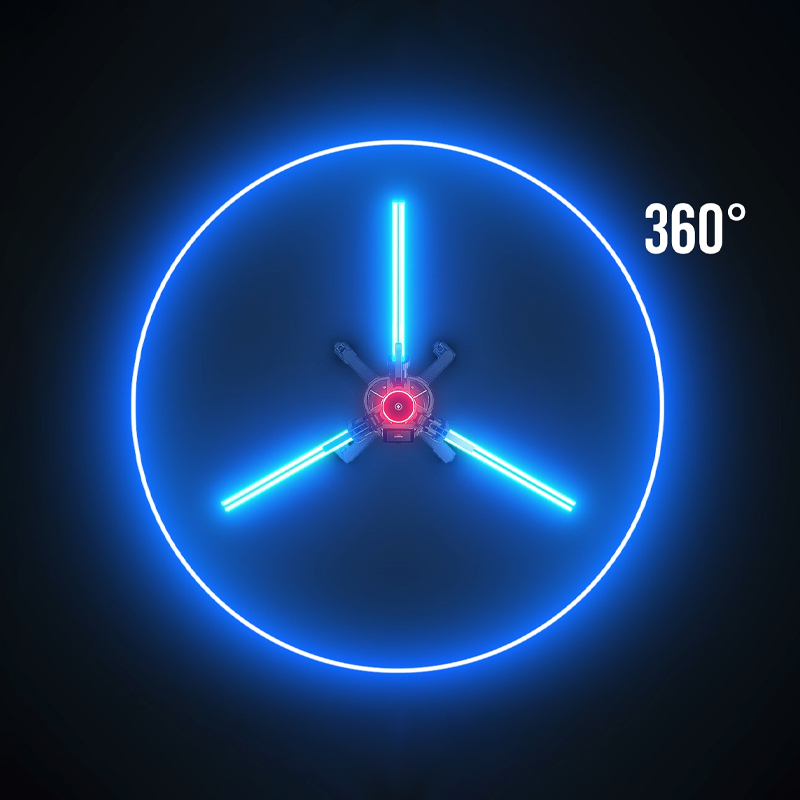

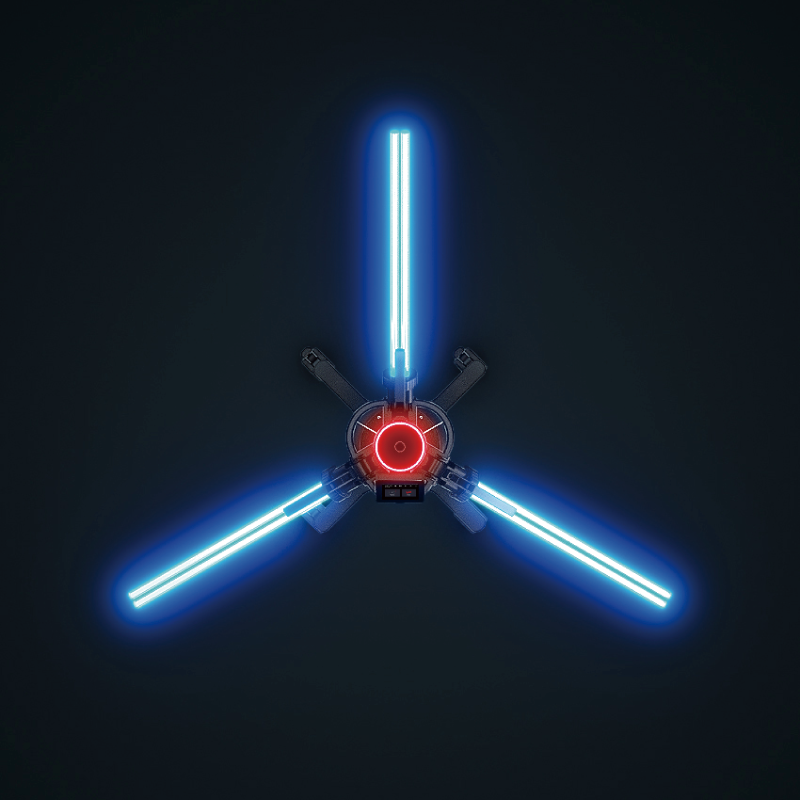

Comprehensive 360-degree sterilization
Comprehensive 360-degree sterilization
Three high-wattage H-shaped UV-C lamps provide extensive irradiation coverage, ensuring thorough 360-degree sterilization without any unexposed areas.

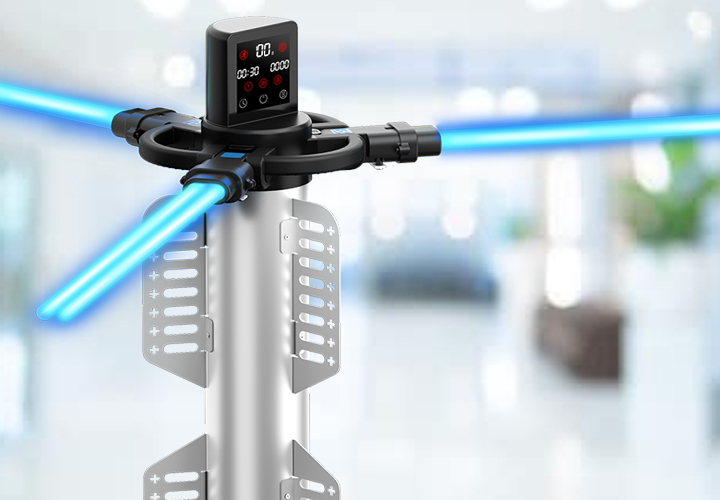

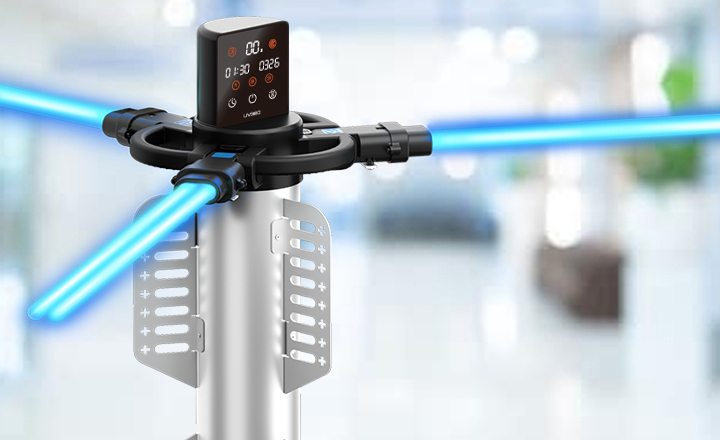

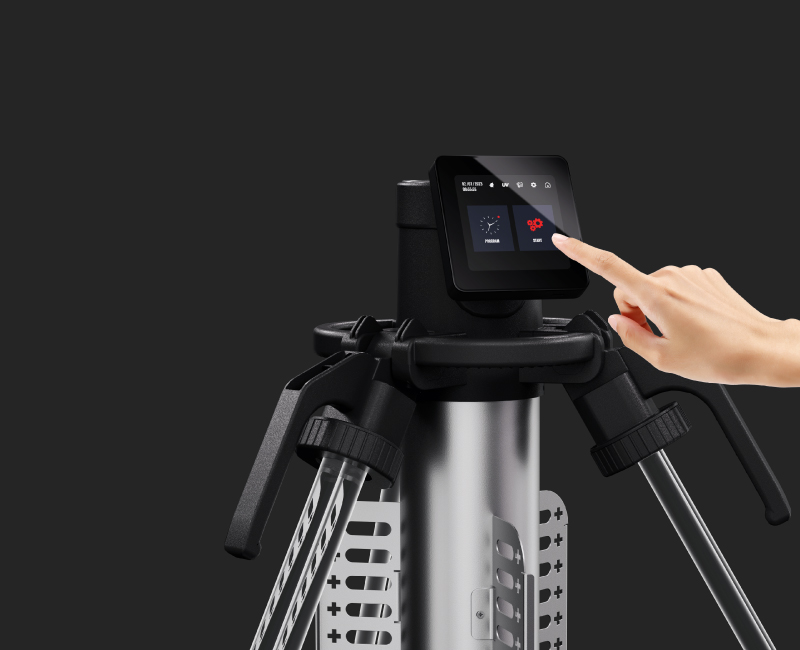

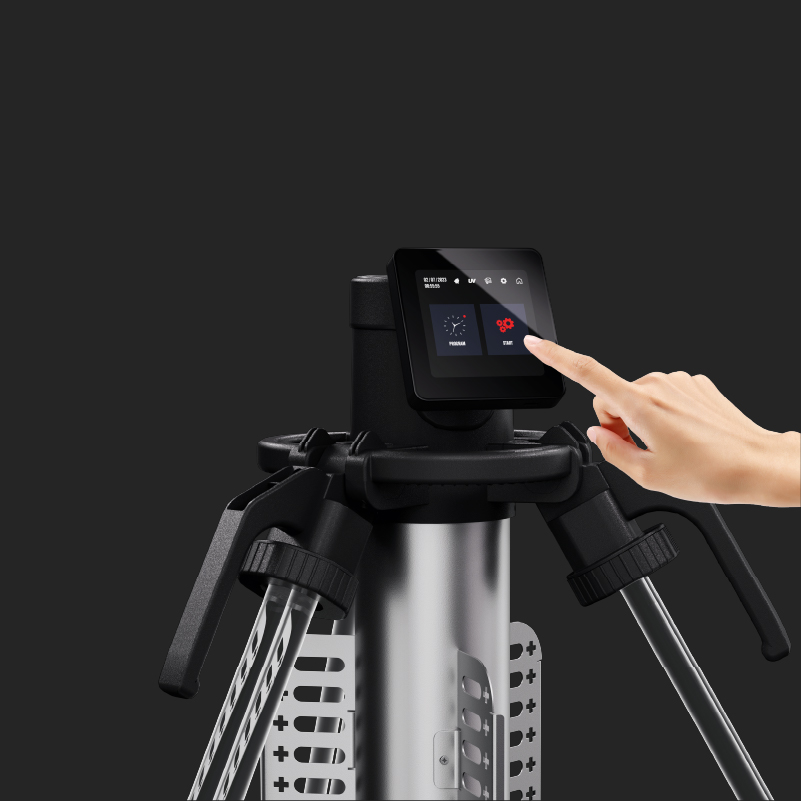

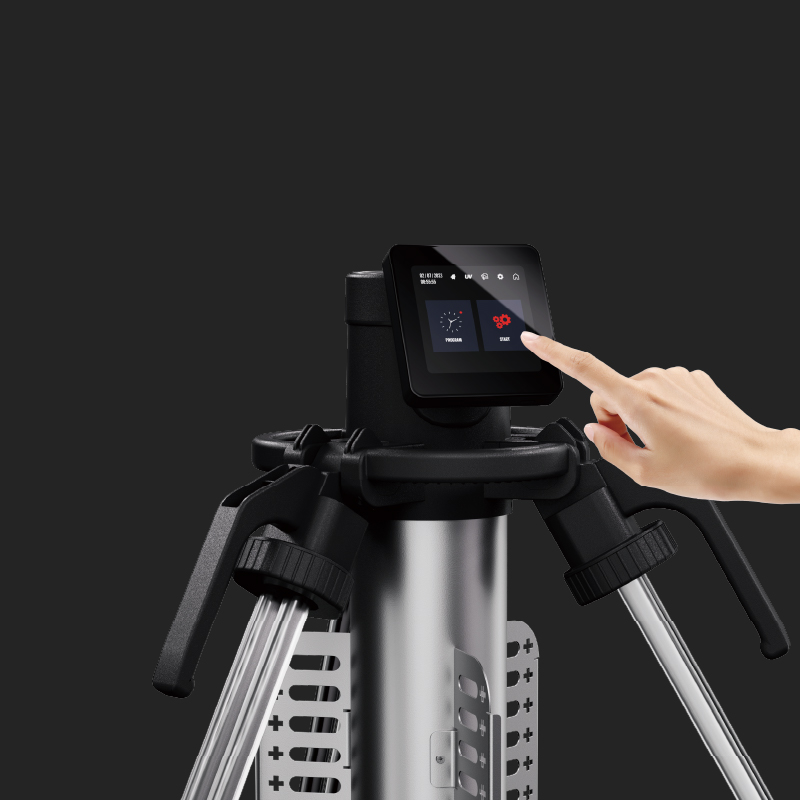

A simplified and user-friendly smart control panel
A simplified and user-friendly smart control panel
The smart control panel features a comprehensive range of functions, ensuring both safety and ease of operation.Password Users are required to enter a password in order to access the system, ensuring secure usage.

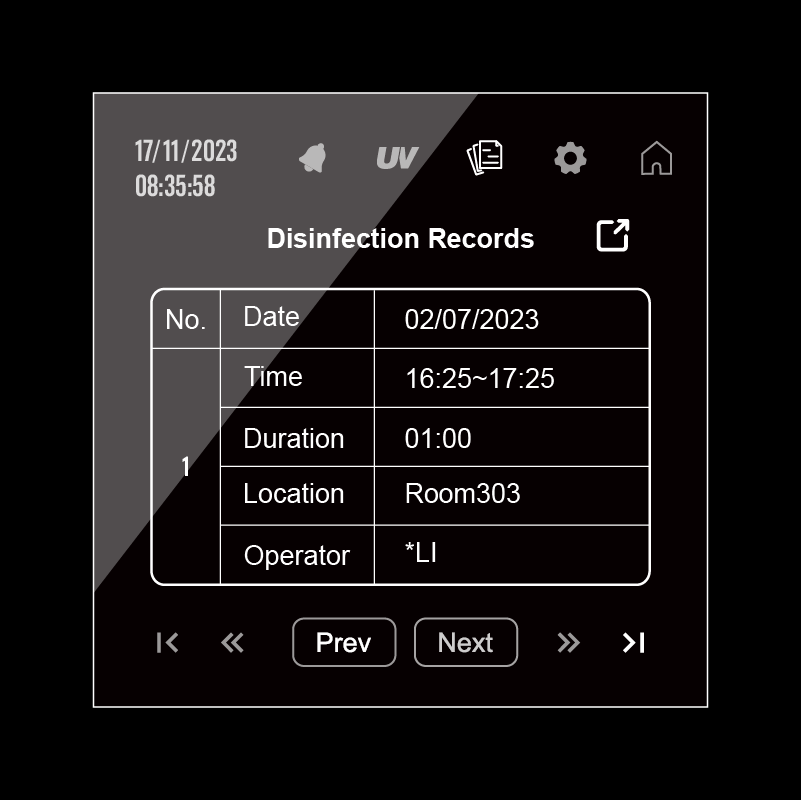

Working record of the UV lamps
Working record of the UV lamps
FUNCTIONS Upon logging in, users can view the usage status of lamps, access replacement records, and generate disinfection logs.

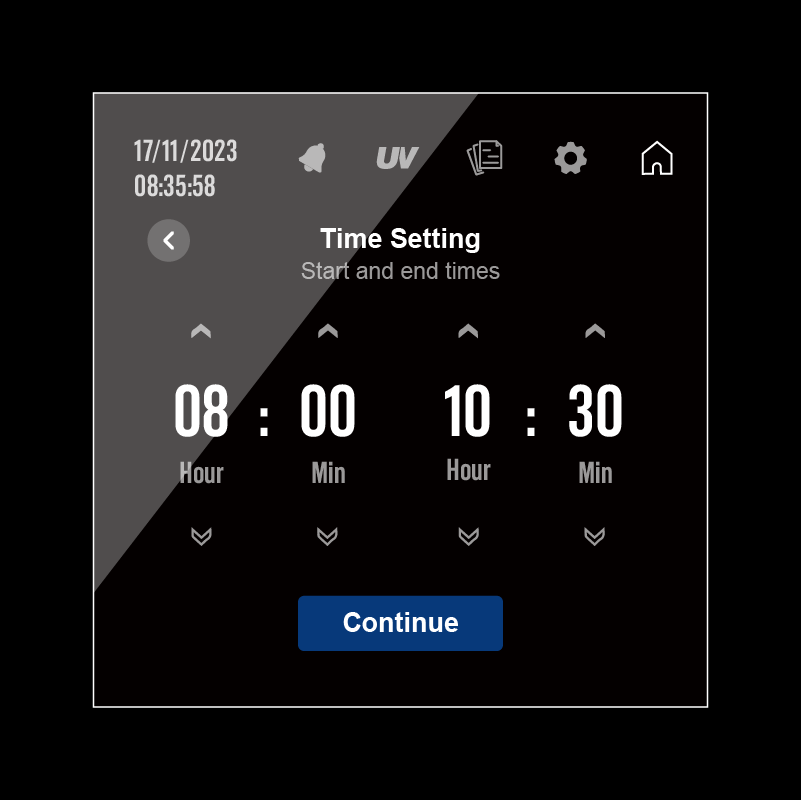

Scheduled machine operation time
Scheduled machine operation time
The UV lamps can be programmed to turn on and off according to specified requirements, improving user convenience.

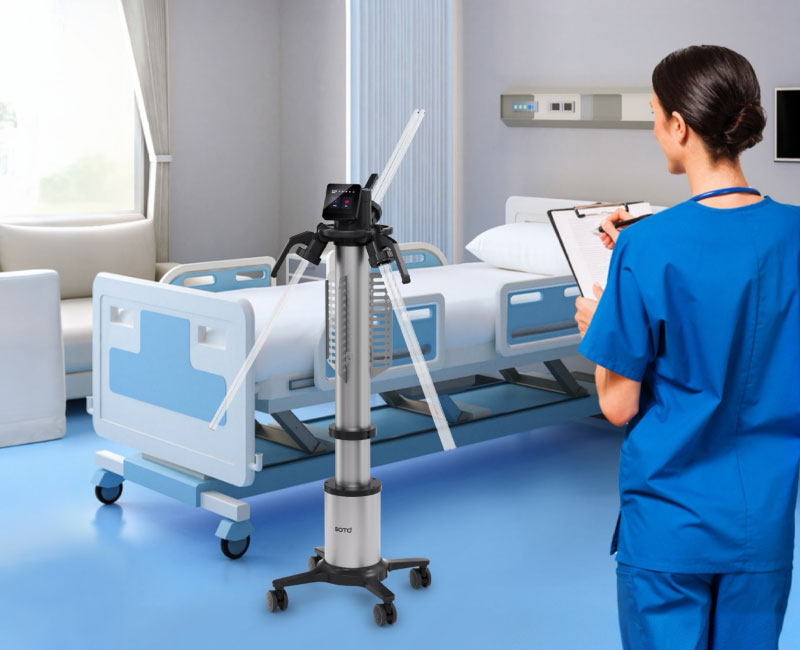

Radar sensor protection
Radar sensor protection
All UV lights will be automatically turned off immediately upon detection of personnel in close proximity to prevent accidental exposure to UV radiation and to ensure the safety of individuals.

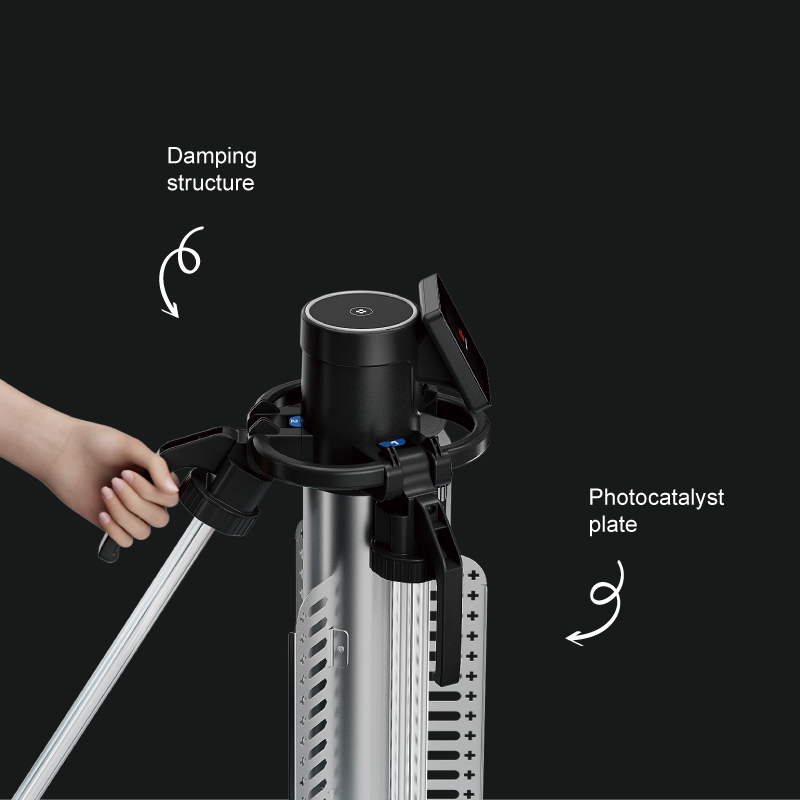

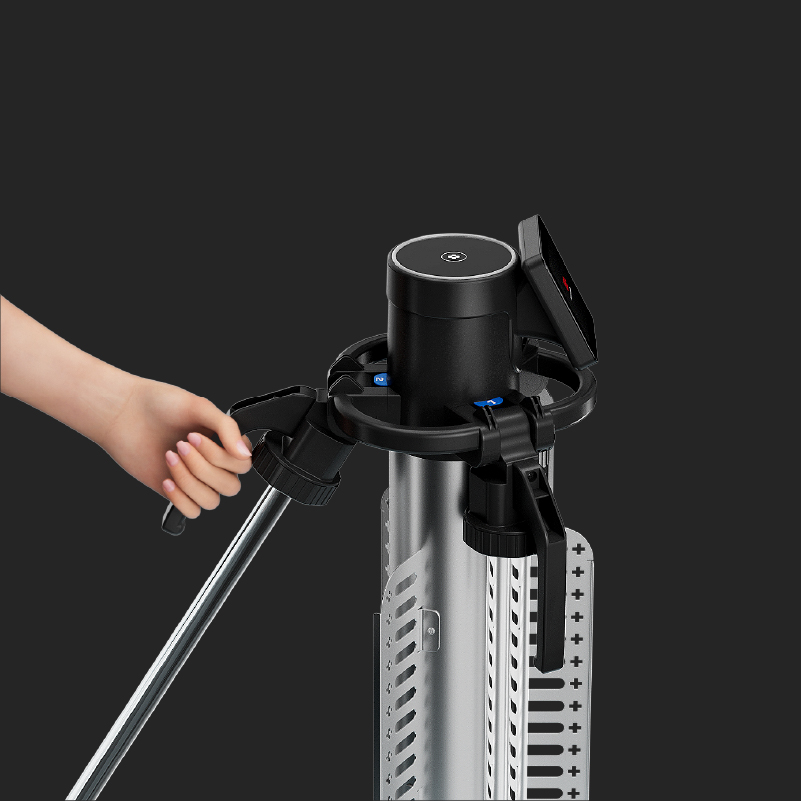

Damping structure and photocatalyst plates
Damping structure and photocatalyst plates

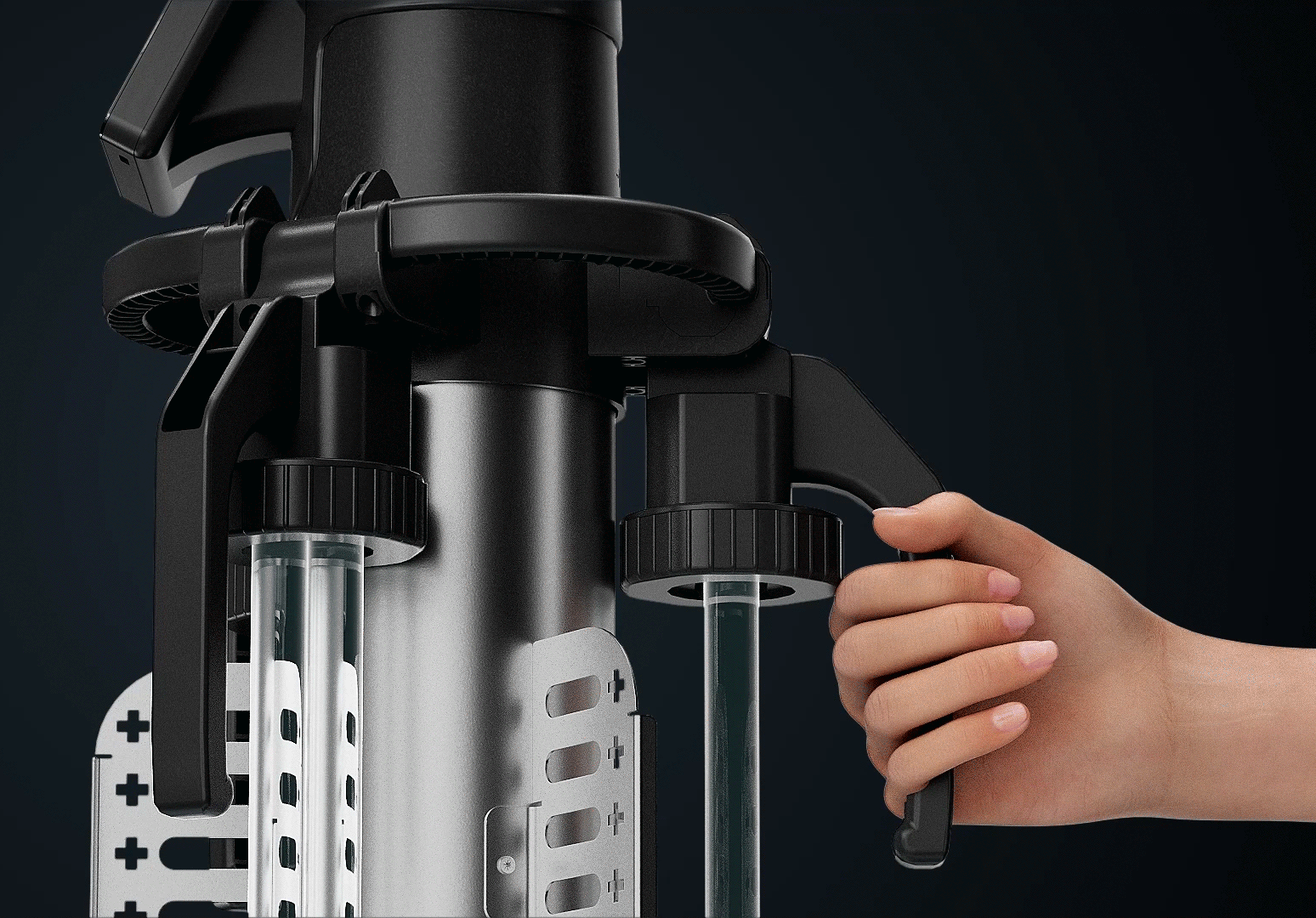

Each UV lamp tube is fitted with a damping structure at its base, enabling single-handed adjustment of the UV lamp angle. Under UV radiation, the photocatalyst plates are capable of decomposing harmful substances.

Specifications

  • Product Name
    UV Sterilizer
  • Model No.
    SY-UV360
  • Power
    220V, 50Hz
  • Power Req
    180W

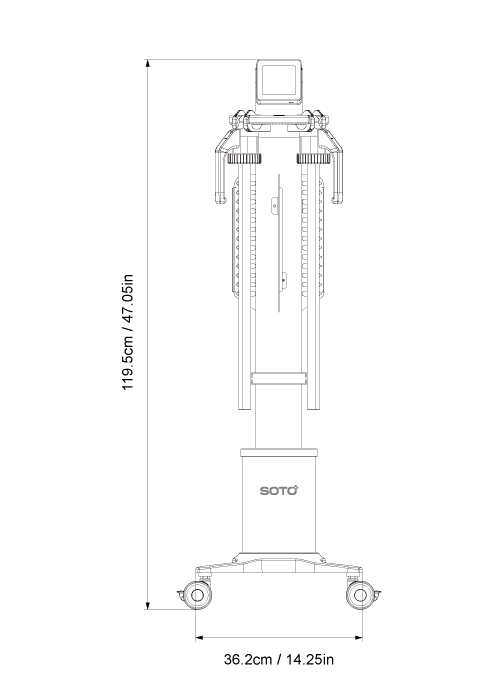

  • Dimensions

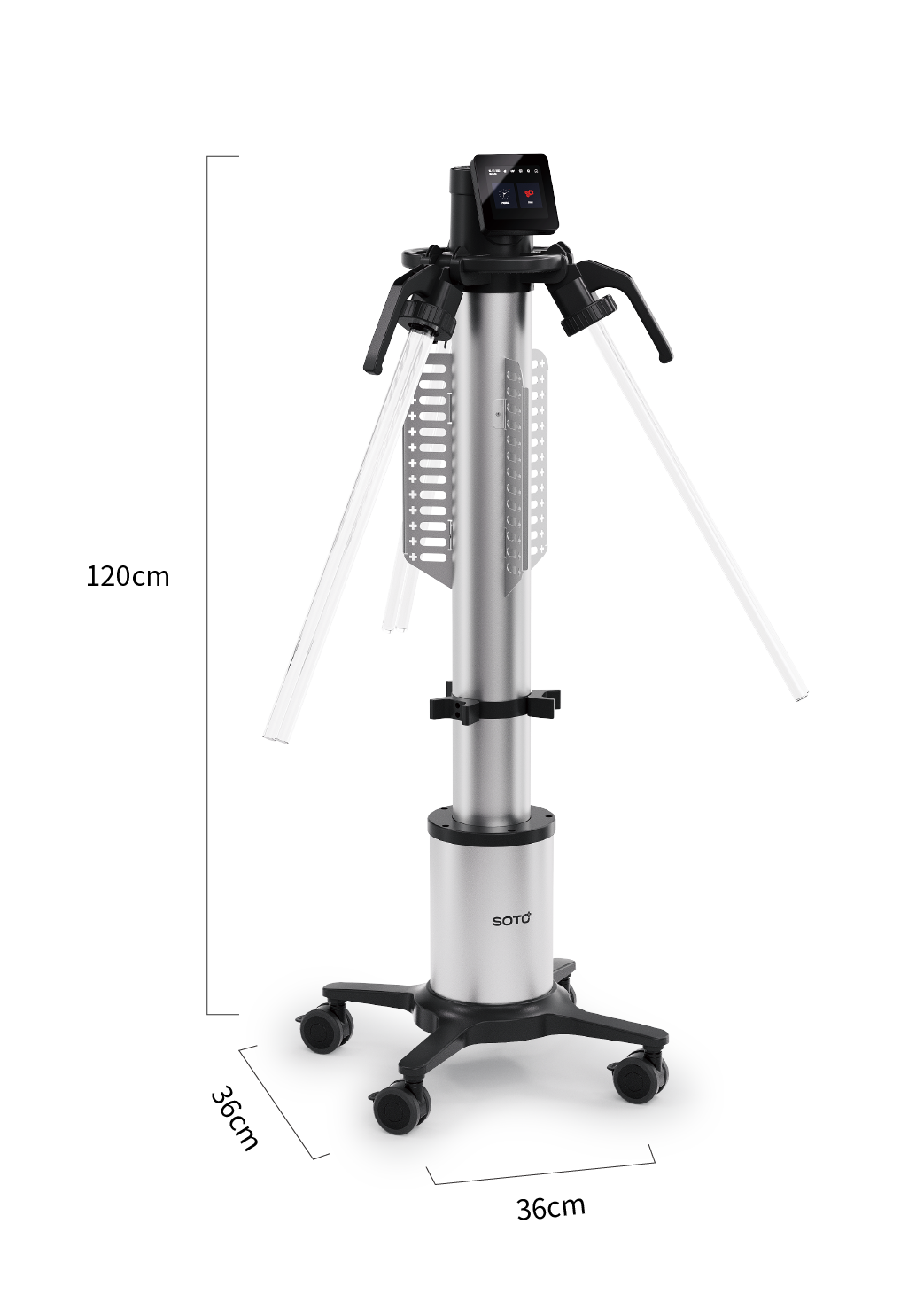

    W36cmx D36cmx H120cm
  • Gross Dimensions
    W50cmxD39cmxH128.5cm
  • Weight
    7.5kg
  • Gross Weight
    15.8kg
  • Colour
    Silve
  • Power cord
    2.5m
  • UV Lamp
    3x55W/ 254nm, UV-C
  • Bacterial Removal
    S. albus>99.9% / Natural Bacteria>90.0%
  • Operation
    Smart Screen Control
  • Display
    Timer/ Start Countdown / Radar/ Work Record/ UV Lamp Lifespan / UV Lamp Replacement Record
  • 20ft Container
    128 Units
  • 40ft Container
    240 Units

FAQ

What is the disinfection rate of UV360?

Independent lab testing showed that UV360 could effectively eliminate the airborne microbes at the rate of 60m³ air per hour.

Can UV360 disinfect surfaces?

Yes. UV360 can be used to disinfect not only the air but also surfaces. The UV lamp can be adjusted 180 degrees horizontally to disinfect various surfaces and objects as desired.

Does UV360 turn off automatically to protect users from accidental UV exposure?

Yes. When detecting possible human activities, the radar sensor automatically triggers shut-off of UV irradiation to prevent harmful exposure.

In the case of automatical shut-off, UV360 records the disrupted disinfection time allowing users to assess the situation and restart the process.

When does the UV360 lamp need to be replaced?

UV360 is equipped with three UV lamps and three corresponding indicators on the display panel to remind users of routine lamp replacement. When the indicator flashes, a user should change the UV lamp as soon as possible to maintain the designed disinfection ability of UV360. The lamp run-time can be conveniently monitored and tracked by the UV usage meter of UV360.
